快速开始使用

连接串口模块

DongshanPI-PicoW属于最小开发板,可以直接使用 5V电压输入 即可开始工作,可以参考下图所示,使用 串口 模块 分别连接P42 TX连接至USB串口模块RX引脚P43 RX连接至串口模块 TX引脚P46 GND连接至串口模块 GND,另外 可以选择 P31 5V连接至串口模块 5V电压输出,确认好连接后,可以通电连接至 电脑USB接口,板子会默认启动,可以通过串口工具等 打开串口 进入系统。

注意: 一定要确保串口模块 5V GND与开发板的P31 P46 连接无误,才能通电,否则 会导致硬件损坏,我们不予处理。

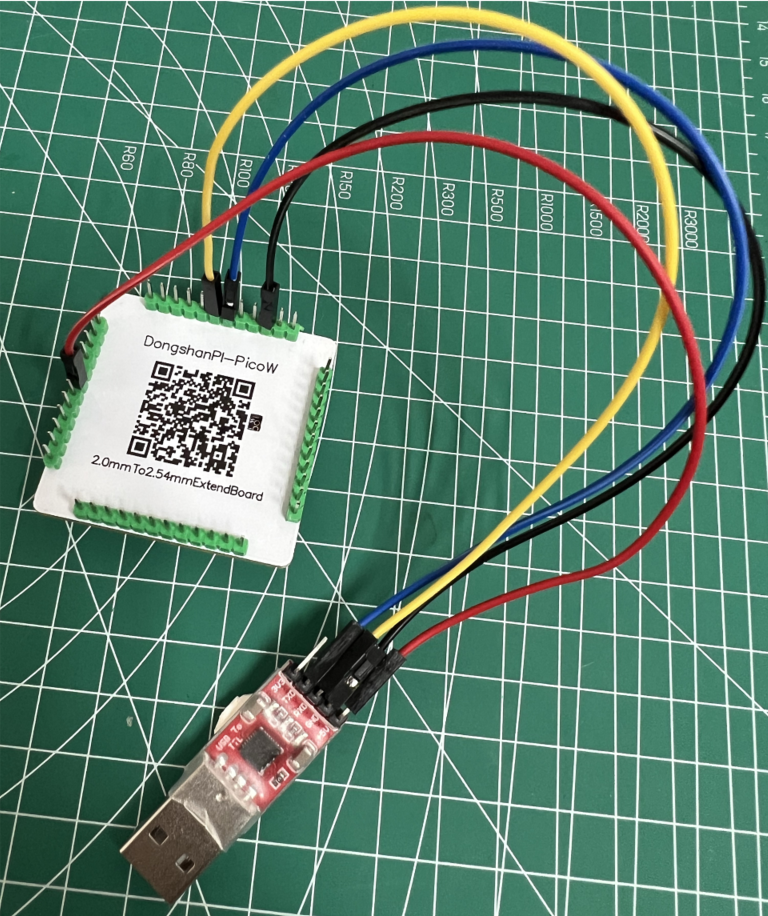

如下使用了一个USB转串口模块和板子的连接示意图,可以用来参考,一定要注意线序和usb转串口模块对上!

使用串口登录系统

1. 连接串口线

将配套的TypeC线一段连接至开发板的串口/供电接口,另一端连接至电脑USB接口,连接成功后板载的红色电源灯会亮起。 默认情况下系统会自动安装串口设备驱动,如果没有自动安装,可以使用驱动精灵来自动安装。

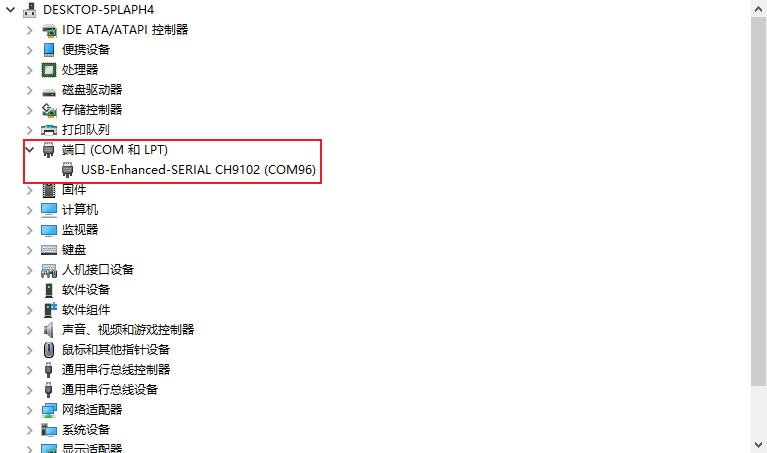

  • 对于Windows系统 此时Windows设备管理器 在 端口(COM和LPT) 处会多出一个串口设备,一般是以 USB-Enhanced-SERIAL CH9102开头,您需要留意一下后面的具体COM编号,用于后续连接使用。

QuickStart-01

如上图,COM号是96,我们接下来连接所使用的串口号就是96。

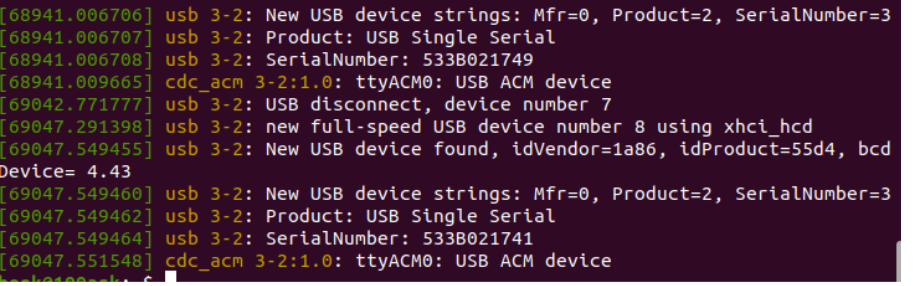

  • 对于Linux系统 可以查看是否多出一个/dev/tty<> 设备,一般情况设备节点为 /dev/ttyACM0 。

QuickStart-02

2. 打开串口控制台

获取串口工具

使用Putty或者MobaXterm等串口工具来开发板设备。

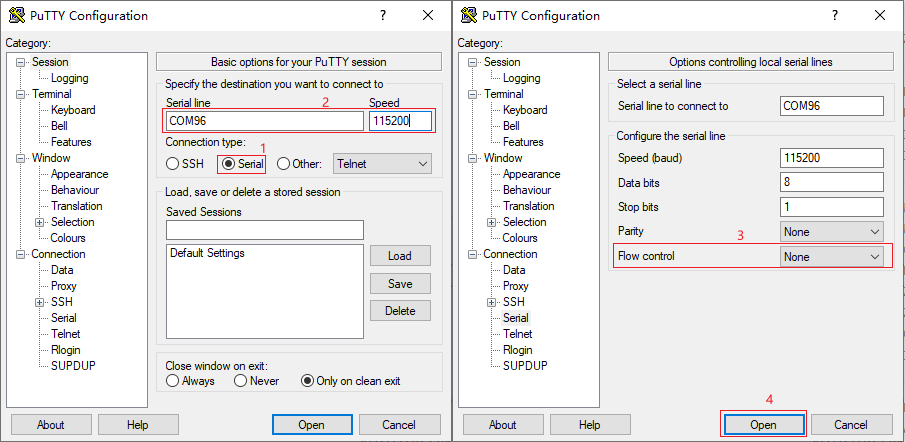

使用putty登录串口

QuickStart-04

使用Mobaxterm登录串口

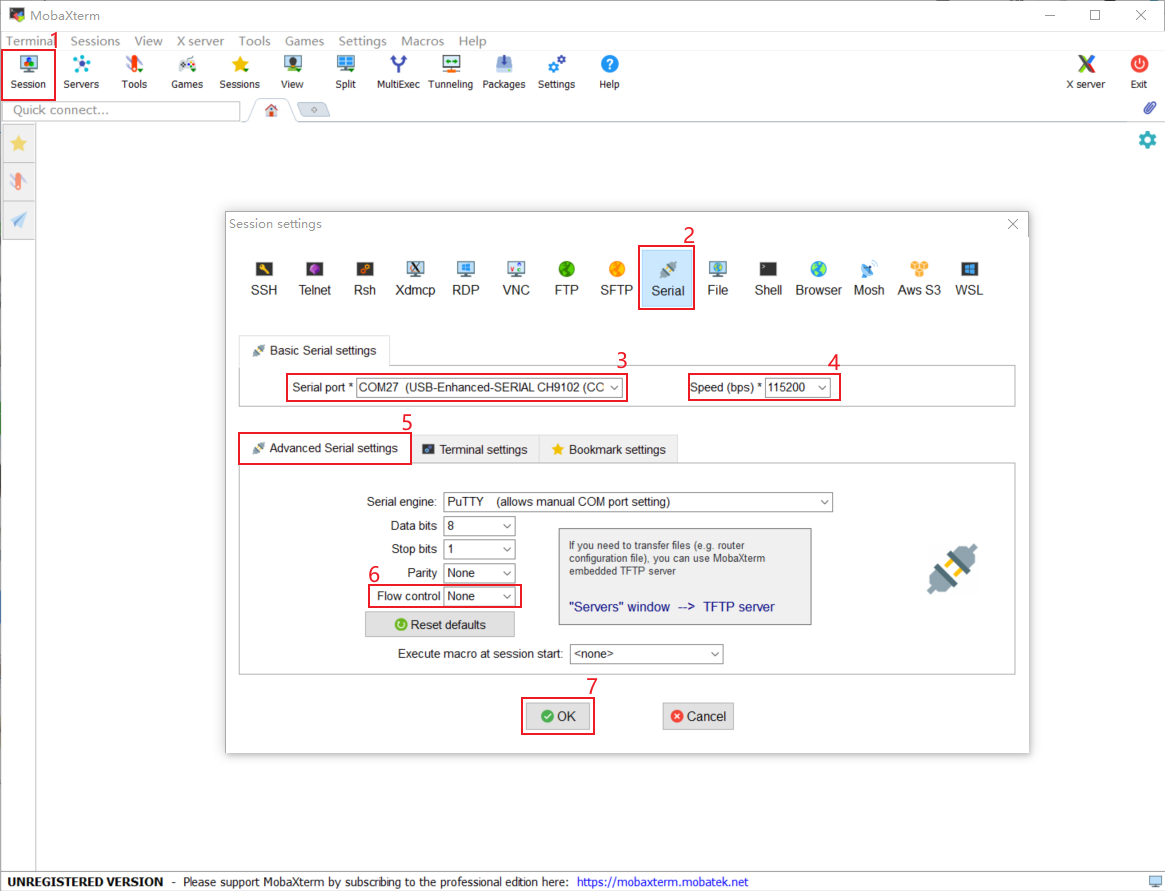

打开MobaXterm,点击左上角的“Session”,在弹出的界面选中“Serial”,如下图所示选择端口号(前面设备管理器显示的端口号COM21)、波特率(Speed 115200)、流控(Flow Control: none),最后点击“OK”即可。步骤如下图所示。 注意:流控(Flow Control)一定要选择none,否则你将无法在MobaXterm中向串口输入数据

Mobaxterm_serial_set_001

3. 进入系统shell

使用串口工具成功打开串口后,可以直接按下 Enter 键 进入shell,当然您也可以按下板子上的 Reset复位键,来查看完整的系统信息。

IPL gdf99011
D-06
HW Reset
00000000 00000000
Resume? N, addr 00000000
miupll_200MHz
SPI 54M
64MB
BIST0_0001-OK
SPI 54M
[BBT] Found table @ 0x00020000

Checksum OK

IPL_CUST gdf99011
Export ENV 1



U-Boot 2015.01 (Dec 10 2021 - 09:17:46), Build: jenkins-devops--UBT--AutoRelese_To_ALKAID-141

Version: P3g5414d39
I2C:   ready
DRAM:
WARNING: Caches not enabled
SPINAND_I:  [FLASH] Found SNI in block 0.
[FLASH] dev_id = 0xee
[FLASH] mfr_id = 0xef, dev_id= 0xaa id_len = 0x3
[SPINAND] RFC ues command 0x6b with 0x08 dummy clock.
[SPINAND] Program load with command 0x32.
[SPINAND] Random load with command 0x34.
[FLASH] Unlock all block.
[FLASH] Use BDMA.
128 MiB
MMC:   MStar SD/MMC: 0
ENV: offset = 0x480000 size = 0x40000
ENV1: offset = 0x4c0000 size = 0x40000
In:    serial
Out:   serial
Err:   serial
Net:   No ethernet found.

NAND read: device 0 offset 0x520000, size 0x500000
Time:383961 us, speed:13654 KB/s
 5242880 bytes read: OK
found the partition info of MISC
_BootLogoSetPq 1674, pData: 23a0ce00 u32DataSize: 2964
gpio debug MHal_GPIO_Pad_Set: pin=62
clk=12M, u16Div=0 u32Duty=0x95f u32Period=0x95f
[halPWMPadSet][106] (pwmId, padId) = (1, 63)
##  Booting kernel from Legacy Image at 22000000 ...
   Image Name:   MVX4##P3##g#######KL_LX409##[BR:
   Image Type:   ARM Linux Kernel Image (lzma compressed)
   Data Size:    2121028 Bytes = 2 MiB
   Load Address: 20008000
   Entry Point:  20008000
   Verifying Checksum ... OK
-usb_stop(USB_PORT0)
-usb_stop(USB_PORT2)
   Uncompressing Kernel Image ...
[XZ] !!!reserved 0x21000000 length=0x 1000000 for xz!!
   XZ: uncompressed size=0x43d000, ret=7
OK
atags:0x20000000

Starting kernel ...

early_atags_to_fdt() success
Booting Linux on physical CPU 0x0
Linux version 4.9.84 (ubuntu@ubuntu1804) (gcc version 9.1.0 (GCC) ) #6 SMP PREEMPT Thu Mar 16 04:59:57 EDT 2023
CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=50c5387d
CPU: div instructions available: patching division code
CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
early_atags_to_fdt() success
OF: fdt:Machine model: PIONEER3 SSC021A-S01A-S
[ERR] LX_MEM, LX_MEM2, LX_MEM3 not 1MB aligned
LXmem is 0x3fe0000 PHYS_OFFSET is 0x20000000
Add mem start 0x20000000 size 0x3fe0000!!!!

LX_MEM  = 0x20000000, 0x3fe0000
LX_MEM2 = 0x0, 0x0
LX_MEM3 = 0x0, 0x0
EMAC_LEN= 0x0
DRAM_LEN= 0x0
deal_with_reserved_mmap memblock_reserve success mmap_reserved_config[0].reserved_start=
0x23c00000

deal_with_reserve_mma_heap memblock_reserve success mma_config[0].reserved_start=
0x21e00000

cma: Reserved 2 MiB at 0x21c00000
Memory policy: Data cache writealloc
percpu: Embedded 14 pages/cpu @c3f1c000 s25368 r8192 d23784 u57344
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 16224
Kernel command line: ubi.mtd=UBI,0x800 root=/dev/mtdblock8 rootfstype=squashfs ro init=/linuxrc LX_MEM=0x3FE0000 mma_heap=mma_heap_name0,miu=0,sz=0x1E00000 cma=2M highres=off mmap_reserved=fb,miu=0,sz=0x300000,max_start_off=0x3C00000,max_end_off=0x3F00000 mtdparts=nand0:0x140000(CIS),0x1a0000(BOOT0),0x1a0000(BOOT1),0x40000(ENV),0x40000(ENV1),0x20000(KEY_CUST),0x500000(KERNEL),0x500000(RECOVERY),0x600000(rootfs),0xa0000(MISC),-(UBI)
PID hash table entries: 256 (order: -2, 1024 bytes)
Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Memory: 24224K/65408K available (2514K kernel code, 206K rwdata, 1304K rodata, 168K init, 159K bss, 39136K reserved, 2048K cma-reserved)
Virtual kernel memory layout:
    vector  : 0xffff0000 - 0xffff1000   (   4 kB)
    fixmap  : 0xffc00000 - 0xfff00000   (3072 kB)
    vmalloc : 0xc4000000 - 0xff800000   ( 952 MB)
    lowmem  : 0xc0000000 - 0xc3fe0000   (  63 MB)
    modules : 0xbf800000 - 0xc0000000   (   8 MB)
      .text : 0xc0008000 - 0xc027ce44   (2516 kB)
      .init : 0xc03e6000 - 0xc0410000   ( 168 kB)
      .data : 0xc0410000 - 0xc0443bc8   ( 207 kB)
       .bss : 0xc0445000 - 0xc046ce90   ( 160 kB)
SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
Preemptible hierarchical RCU implementation.
        Build-time adjustment of leaf fanout to 32.
        RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2.
RCU: Adjusting geometry for rcu_fanout_leaf=32, nr_cpu_ids=2
NR_IRQS:16 nr_irqs:16 16
ms_init_main_intc: np->name=ms_main_intc, parent=gic
ms_init_pm_intc: np->name=ms_pm_intc, parent=ms_main_intc
ss_init_gpi_intc: np->name=ms_gpi_intc, parent=ms_main_intc
Find CLK_cpupll_clk, hook ms_cpuclk_ops
Find CLK_spi_synth_pll, hook ss_pllclk_ops
arm_arch_timer: Architected cp15 timer(s) running at 6.00MHz (virt).
clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x1623fa770, max_idle_ns: 440795202238 ns
sched_clock: 56 bits at 6MHz, resolution 166ns, wraps every 4398046511055ns
Switching to timer-based delay loop, resolution 166ns
Console: colour dummy device 80x30
console [ttyS0] enabled
Calibrating delay loop (skipped), value calculated using timer frequency.. 12.00 BogoMIPS (lpj=60000)
pid_max: default: 4096 minimum: 301
Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
CPU: Testing write buffer coherency: ok
CPU0: update cpu_capacity 1024
CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
Setting up static identity map for 0x20008280 - 0x200082cc
CPU1: update cpu_capacity 1024
CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
Brought up 2 CPUs
SMP: Total of 2 processors activated (24.00 BogoMIPS).
CPU: All CPU(s) started in SVC mode.
devtmpfs: initialized
VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
futex hash table entries: 16 (order: -2, 1024 bytes)
NET: Registered protocol family 16
DMA: preallocated 256 KiB pool for atomic coherent allocations


Version : MVX4##P3##g#######KL_LX409##[BR:g]#XVM

GPIO: probe endhw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
hw-breakpoint: maximum watchpoint size is 8 bytes.
SCSI subsystem initialized
Pinreg:0 bit:0 enable:0 speed:5
Port:0 Index=1
Enable=1
DmaReadMode:0
Speed:5
DmaEnable:0
DmaAddrMode:0
DmaMiuCh:0
DmaMiuPri:0
DmaPhyAddr:21c40000
START default delay 5(us)
STOP default delay 5(us)
HWI2C_MUTEX_CREATE!
HWI2C(0): initialized
Pinreg:0 bit:0 enable:0 speed:5
Port:1 Index=17
Enable=1
DmaReadMode:0
Speed:5
DmaEnable:1
DmaAddrMode:0
DmaMiuCh:0
DmaMiuPri:0
DmaPhyAddr:21c41000
START default delay 5(us)
STOP default delay 5(us)
HWI2C_MUTEX_CREATE!
HWI2C(1): initialized
[DrvPWMDutyQE0] grp:0
[DrvPWMDutyQE0] grp:0
[DrvPWMDutyQE0] grp:0
[DrvPWMDutyQE0] grp:0
[NOTICE]pwm-isr(60) success. If not i6e or i6b0, pls confirm it on .dtsi
clocksource: Switched to clocksource arch_sys_counter
NET: Registered protocol family 2
TCP established hash table entries: 1024 (order: 0, 4096 bytes)
TCP bind hash table entries: 1024 (order: 2, 20480 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
UDP hash table entries: 128 (order: 0, 6144 bytes)
UDP-Lite hash table entries: 128 (order: 0, 6144 bytes)
NET: Registered protocol family 1
hw perfevents: enabled with armv7_cortex_a7 PMU driver, 5 counters available
workingset: timestamp_bits=30 max_order=13 bucket_order=0
squashfs: version 4.0 (2009/01/31) Phillip Lougher
jffs2: version 2.2. © 2001-2006 Red Hat, Inc.
fuse init (API version 7.26)
io scheduler noop registered
io scheduler deadline registered (default)
libphy: Fixed MDIO Bus: probed
mousedev: PS/2 mouse device common for all mice
[MHal_GPIO_Check_PE] set gpio84 PE
i2c /dev entries driver
1f221000.uart0: ttyS0 at MMIO 0x0 (irq = 34, base_baud = 10800000) is a unknown
1f221200.uart1: ttyS1 at MMIO 0x0 (irq = 35, base_baud = 10800000) is a unknown
1f220400.uart2: ttyS2 at MMIO 0x0 (irq = 37, base_baud = 10800000) is a unknown
1f221400.uart2: ttyS3 at MMIO 0x0 (irq = 38, base_baud = 10800000) is a unknown
>> [sdmmc] ms_sdmmc_probe
Fail to get pad(131074) form padmux !
>> [sdmmc] Err: Could not get SD pad group from Padmux dts!
>> [sdmmc] Err: Failed to use DTS function!

ms_sdmmc: probe of soc:sdmmc failed with error -22
MSYS: DMEM request: [emac0_buff]:0x00000812
MSYS: DMEM request: [emac0_buff]:0x00000812 success, CPU phy:@0x21C44000, virt:@0xC1C44000
libphy: mdio: probed
mdio_bus mdio-bus@emac0: /soc/emac0/mdio-bus/ethernet-phy@0 has invalid PHY address
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 0
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 1
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 2
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 3
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 4
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 5
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 6
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 7
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 8
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 9
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 10
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 11
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 12
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 13
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 14
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 15
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 16
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 17
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 18
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 19
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 20
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 21
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 22
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 23
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 24
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 25
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 26
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 27
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 28
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 29
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 30
mdio_bus mdio-bus@emac0: scan phy ethernet-phy at address 31
[emac_phy_connect][3534] connected mac emac0 to PHY at mdio-bus@emac0:00 [uid=11112222, driver=Generic PHY]
[ms_cpufreq_init] Current clk=799999872
[FLASH] Found SNI in block 0.
[FLASH] dev_id = 0xee
MSYS: DMEM request: [BDMA]:0x00000840
MSYS: DMEM request: [BDMA]:0x00000840 success, CPU phy:@0x21C45000, virt:@0xC1C45000
[FLASH] mfr_id = 0xef, dev_id= 0xaa id_len = 0x3
[SPINAND] RFC ues command 0x6b with 0x08 dummy clock.
[SPINAND] Program load with command 0x32.
[SPINAND] Random load with command 0x34.
[FLASH] Use BDMA.
nand: device found, Manufacturer ID: 0xef, Chip ID: 0xaa
nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64
11 cmdlinepart partitions found on MTD device nand0
Creating 11 MTD partitions on "nand0":
0x000000000000-0x000000140000 : "CIS"
0x000000140000-0x0000002e0000 : "BOOT0"
0x0000002e0000-0x000000480000 : "BOOT1"
0x000000480000-0x0000004c0000 : "ENV"
0x0000004c0000-0x000000500000 : "ENV1"
0x000000500000-0x000000520000 : "KEY_CUST"
0x000000520000-0x000000a20000 : "KERNEL"
0x000000a20000-0x000000f20000 : "RECOVERY"
0x000000f20000-0x000001520000 : "rootfs"
0x000001520000-0x0000015c0000 : "MISC"
0x0000015c0000-0x000008000000 : "UBI"
[wakeup source] HW gate_xtal:0 SourceNum:1
[wakeup source] WakeupSource:61

[ss_gpi_intc_domain_alloc] hw:61 -> v:65
[ss_gpi_irq_set_wake] hw:61 enable? 1
NET: Registered protocol family 17
[mstar_pm_init] resume_pbase=0x200114F5, suspend_imi_vbase=0xC4057000
ThumbEE CPU extension supported.
Registering SWP/SWPB emulation handler
ubi0: attaching mtd10
ubi0: scanning is finished
ubi0: attached mtd10 (name "UBI", size 106 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 850, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 2/1, WL threshold: 4096, image sequence number: 0
ubi0: available PEBs: 25, total reserved PEBs: 825, PEBs reserved for bad PEB handling: 20
ubi0: background thread "VFS: Mounted root (squashfs filesystem) readonly on device 31:8.
devtmpfs: mounted
This architecture does not have kernel memory protection.
[DMA]: Transfer NOT Completely!
ERROR: Bus[1] in ms_i2c_xfer_write: Slave dev NAK, Addr: 0xba, Data: 0x80 0x47
Goodix-TS 1-005d: i2c test failed attempt 1: -110
[emac_phy_link_adjust] EMAC Link Down
[DMA]: Transfer NOT Completely!
ERROR: Bus[1] in ms_i2c_xfer_write: Slave dev NAK, Addr: 0xba, Data: 0x80 0x47
Goodix-TS 1-005d: i2c test failed attempt 2: -110
Goodix-TS 1-005d: I2C communication failure: -110
Goodix-TS 1-005d: touchscreen config failed!!!
mount: can't find devpts in /etc/fstab
net.core.rmem_default = 163840
net.core.rmem_max = 163840
net.core.wmem_default = 524288
net.core.wmem_max = 1048576
net.ipv4.tcp_mem = 924  1232  1848
net.ipv4.tcp_rmem = 4096  87380  325120
net.ipv4.tcp_wmem = 4096  131072  393216
mount: mounting none on /sys failed: Drandom: fast init done
evice or resource busy
mount: mounting noUBIFS (ubi0:0): background thread "ubifs_bgt0_0" started, PID 577
ne on /sys/kernel/debug/ failed: Device or resource busy
UBIFS (ubi0:0): recovery needed
UBIFS (ubi0:0): recovery completed
UBIFS (ubi0:0): UBIFS: mounted UBI device 0, volume 0, name "miservice"
UBIFS (ubi0:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
UBIFS (ubi0:0): FS size: 11427840 bytes (10 MiB, 90 LEBs), journal size 1904640 bytes (1 MiB, 15 LEBs)
UBIFS (ubi0:0): reserved for root: 0 bytes (0 KiB)
UBIFS (ubi0:0): media format: w4/r0 (latest is w4/r0), UUID 17CB3D0B-DDBA-45AD-B591-2625FAE405BE, small LPT model
UBIFS (ubi0:1): background thread "ubifs_bgt0_1" started, PID 580
UBIFS (ubi0:1): recovery needed
UBIFS (ubi0:1): recovery completed
UBIFS (ubi0:1): UBIFS: mounted UBI device 0, volume 1, name "customer"
UBIFS (ubi0:1): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
UBIFS (ubi0:1): FS size: 79613952 bytes (75 MiB, 627 LEBs), journal size 9023488 bytes (8 MiB, 72 LEBs)
UBIFS (ubi0:1): reserved for root: 0 bytes (0 KiB)
UBIFS (ubi0:1): media format: w4/r0 (latest is w4/r0), UUID 86613E8B-DAE5-49A0-9361-DE40E76B69BE, small LPT model
UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 583
UBIFS (ubi0:2): recovery needed
UBIFS (ubi0:2): recovery completed
UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "appconfigs"
UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
UBIFS (ubi0:2): FS size: 3809280 bytes (3 MiB, 30 LEBs), journal size 1142785 bytes (1 MiB, 8 LEBs)
UBIFS (ubi0:2): reserved for root: 0 bytes (0 KiB)
UBIFS (ubi0:2): media format: w4/r0 (latest is w4/r0), UUID 6561C2CE-C61A-4F56-8E94-29512892FA00, small LPT model
firmwarefs/fwfs.c:1321:error: Corrupted dir pair at {0xa0000001, 0xa0000000}
fwfs_fuse.c:594:error: Invalid or incomplete multibyte or wide character
insmod: can't read '/config/modules/4.9.84/nfsv3.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/mmc_core.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/kdrv_sdmmc.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/ms_notify.ko': No such file or directory
jpe driver probed
[DRV_DIVP_PROC_Init]
AudioProcInit 374
module [sys] init
MI_SYSCFG_SetupMmapLoader default_config_path:/config/config_tool, argv1:/config/load_mmap,argv2:/config/mmap.ini
config...... cmdpath:/config/config_tool, argv0:/config/load_config
config...... cmdpath:/config/config_tool, argv1:/misc/config.ini
config...... cmdpath:/config/config_tool, argv2:/misc/PQConfig.ini
config...... cmdpath:/config/config_tool, argv3:(null)
mi_sys_mma_allocator_create success, heap_base_addr=20000000 length=20000
module [gfx] init
module [rgn] init
module [fb] init
[MI ERR ]: _MI_FB_GetLayerInfo[56]: no found fb info, please check fb ini config
no found fb ini param

module [ao] init
module [ai] init
module [pspi] init
module [divp] init
module [panel] init
module [disp] init
module [venc] init Dec 20 2021 14:59:44
insmod: can't read '/config/modules/4.9.84/media.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/videodev.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/v4l2-common.ko': No such file or directory
Mstar_ehc_init version:20180309
Sstar-ehci-1 H.W init
Titania3_series_start_ehc start
[USB] config miu select [70] [e8] [ef] [ef]
[USB] enable miu lower bound address subtraction
[USB] init squelch level 0x2
BC disable
insmod: can't read '/config/modules/4.9.84/scsi_mod.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/videobuf2-core.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/videobuf2-v4l2.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/videobuf2-memops.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/videobuf2-vmalloc.ko': No such file or directory
insmod: can't read '/config/modules/4.9.84/uvcvideo.ko': No such file or directory
==20180309==> hub_port_init 1 #0
Plug in USB Port1
/ #
系统默认会自己登录 没有用户名 没有密码。 系统默认会自己登录 没有用户名 没有密码。 系统默认会自己登录 没有用户名 没有密码。
