柚木PI-变色龙硬件简述

硬件简述

  • Based on Allwinner H616 chip, 4*Cortex A53
  • HDMI supports 4K@60, supports up to 6K video decoding
  • Up to 2GB RAM and 128GB eMMC storage
  • Onboard 1GB DDR3 RAM
  • Onboard 8G eMMC and TF card slot
  • Onboard XR829 WIFI+Bluetooth chip
  • 4 USB Type C, 3 HOST and one OTG, support USB camera and capture card input
  • Onboard fan slot, radiator fixing hole
  • Lead out RJ45 100M interface
  • Onboard 40 Pin GPIO, can expand SPI LCD display, Gigabit Ethernet, microphone array, CAN transceiver, * temperature and humidity sensor, acceleration sensor and so on.
  • AXP313A Power Solution
  • Raspberry Pi A Size

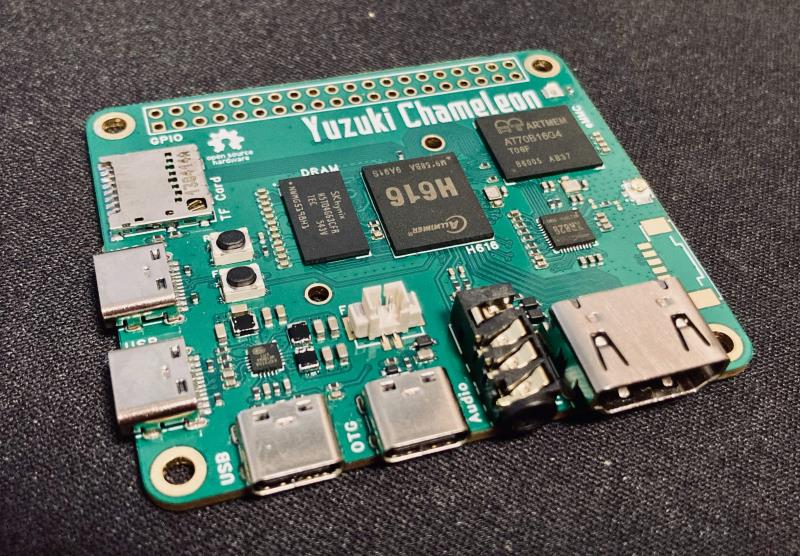

YuzukiChameleon

![h616brief](https://github.com/YuzukiHD/YuzukiChameleon/raw/master/Bitmap/brief.png
